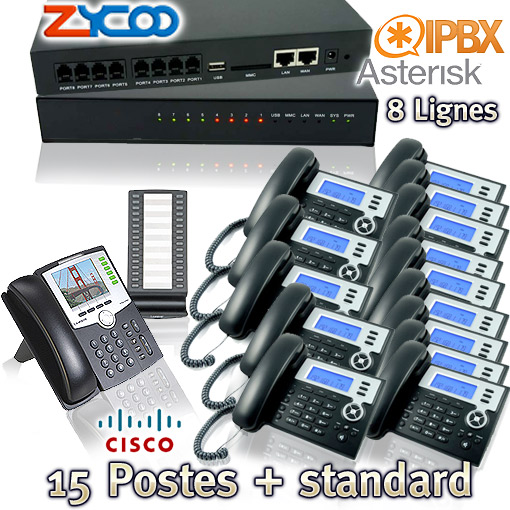

FICHE TECHNIQUE IPBX:
Description :
- Modules Design: Up to 8 Dual FXS/FXO ports or mixed Dual FXS/FXO ports per card.
- Scalable: Just add additional cards to extend system.
- Easy to use: Easy operation with Web GUI.
-Global usable: Configurable line interface to meet global telephone line interface requirements.
-High quality with low price
- PBX function: IVR, Voicemail, Conference bridge, Fax(T.38), etc
Features:
-Up to 30 concurrent calls.
-8 AnaloguelinescanbeDualFXSorDual FXO.
- VoIP ready.
-Web based management
Hardware and Software Requirements:
-32bit embedded DSP CPU
-Four analog FXS-200/FXO-200 modules
-256Mbytes FLASH
-64Mbytes SDRAM
-Adapter In: 100~240V AC Out: +12V DC, 2A
-uClinux 2.6.X
-Asterisk 1.4.4
FICHE TECHNIQUE TELEPHONE IP:
Description :
SIP 2.0 (RFC3261) and correlative RFCs..
Full duplex hands-free speaker phone.
NAT transverse：support STUN client.
SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server,
Peer to Peer/ IP call.
SIP support 2 SIP lines or only one IAX2 lines. Can connect to SIP1 and SIP2 server at the same time DTMF：Support SIP info, DTMF Relay, RFC2833.
SIP application: support Call forward/ transfer/holding/ waiting / 3 way talking/ paging
and intercom/pickup/join call/click to dial/call park.
Call control features: Flexible dial map, Hot line,empty calling reject, Black list for reject
authenticated call, limit call, No disturb, Caller ID.
Support Phonebook 500 records
Incoming calls / Outgoing calls / Missing calls. Each support 100 records
Support conference and voice record on SIP server
10 kind of ring type
Support SRTP
Support MWI
Voice:
Codec: G.711 A/U Law, G.722, G.723, G.729,
Echo cancellation: Support G.168, and Hands-free can support 96ms, Hand free Speaker Phone.
Support Voice Gain Setting, VAD, CNG
Networking:
WAN/LAN: Support Bridge and Router model
Support basic NAT and NAPT
Support PPPoE for xDSL
Support DHCP Client on WAN
Support VLAN (optional: voice vlan/data vlan)
QoS with DiffServ
Support DMZ
Support main DNS and secondary DNS server
Support DNS Relay, SNTP Client, Firewall
Network tools in telnet server: Including ping, trace route,
telnet client
Protocols:
MAC Address
TCP:Transmission Control Protocol
DHCP:Dynamic Host Configuration Protocol
PPPoE:PPP Protocol over Ethernet
SNTP, Simple Network Time Protocol
STUN - Simple Traversal of User Datagram ...
MD5 Message-Digest Algorithm
DNS: Domain Name Server
RTP: Real-time Transport Protocol
RTCP:Real-time Control Protocol
Telnet:Internet's remote login protocol
HTTP:Hyper Text Transfer protocol
FTP:File Transfer protocol
TFTP:Trivial File Transfer Protocol
Maintenance and Management:
Web ,telnet and keypad management
Management with different account right
Upgrade firmware through POST mode
Upgrade firmware through HTTP, FTP or TFTP.
Telnet remote management/Upload/download setting file
Safe mode provide reliability
Supoort Auto Provisioning (upgrade firmware or
configuration file)
Support Syslog
