FICHE TECHNIQUE
Description du produit

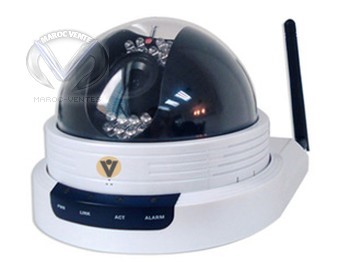

| KD-NVC83WD-42S |
420 TVL, 0.5LUX,1/3 Super HAD CCD |
| IR LED |
Build in 16PCS led. IR distance 10m. |
| Video compression |
H.264 Main Profile@Level 3/MJPEG optional |
| Lens |
Build in 6mmfixed lens. |
| Video Parameters |
Brightness,Hue,Contrast,Saturation,Image quality. |
| Streaming Format |
Optional Video Streaming or Audio&Video composite Streaming |
| Video Frame Rate |
1-30frames/second |
| Video Compression Bitrate |
16Kbit/S~8Mbit/S |
| Audio Input |
1channel,linear input |
| Audio Compression |
G.726 |
| Audio Output |
1channel,RCA interface,linear output |
| Audio talk-back |
Built-in Mic. |
| Supported Protocols |
TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP |
| System Interface |
Build in Microphone, Speaker and Buzzer. |
| 10M/100M self-adapting Ethernet port, |
| 1 RS485 port (supports transparent protocols) |
| WiFi port(802.11b/g wireless network)/ WPA2 |
| SD card (maximum 32GB) |
| Support mobile suveillance |
| Alarm Input |
1 channel on/off input,supporting NO(normally open) or NC(normally close) sense. |
| Alarm Output |
1 channel on/off output,120VAC 1A/24VDC 1A |
| Input Power Supply |
DC 12V,1A |
| Maximum Power |
Less than 6W |
| Operating Temperature |
-10 ~ +55? |
| Operating Humidity |
RH85%MAX |
| System Requirements |
Operation System:Microsoft Windows 98/ME/2000/XP/2003
Browser:Microsoft Internet Explorer 5.x or abovee |
| Dimension |
14cm(L)*14cm(W)*10.8(H) |
| Net weight |
0.6kg |
