FICHE TECHNIQUE |
Description du produit |

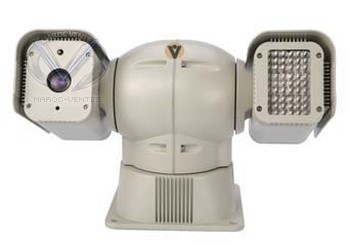

| KD-NVC910-PTR |
IP PTZ dome |
Network Spec |
| Video compression |
H.264 Main Profile@Level 3/MJPEG optional |
| Video Compression Bit rate |
16Kbit/S~8Mbit/S |
| Supported Protocols |
TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP |
| Streaming Format |
Optional Video Streaming or Audio&Video composite Streaming |
| Audio streaming |
Two Way Audio connector(Optional) |
| Local Storage |
SD card, Max. 5G(Optional) |
| System Interface |
10M/100M self-adapting Ethernet port, power supply cable. |
| Support mobile suveillance |
Speed Dome Spec |
|
preset |
128 presets, can be labeled with editable title |
|
Pan rotation range |
360° Endless |
|
Tilt range |
Tilt 90° |
|
Manual pan speed |
0°—45°/S |
|
Manual vertical speed |
0°—45°/S |
|
Cruse tracking |
4pcs |
|
Alarm |
4-Alarm in and 1 Alarm output. |
|
Communication |
RS485-422,AD,BI-PHASS code, axis visual control |
|
IP Grade |
IP66 |
|
Baud rate (RS485) |
2400/4800/9600/19200bps |
Environmental |
| Operating Temp |
-40°C-70°C(Outdoor dome) |
| Operating Humidity |
RH90%MAX |
| Power Supply |
DC12V(4A) |
| Power Consumption |
46W |
Camera Spec |
| Image Sensor |
1/4” Exview CCD (Day/Night Mode) |
| Resolution |
540TVL |
| Min. Illumination |
0.7Lux/0Lux (IR On) |
| Zoom Magnification |
216X |
| Zoom Length |
4.1-73.8mm |
| Angle of View |
Wide 48° Tele 2.7° |
| privacy masking |
8 |
